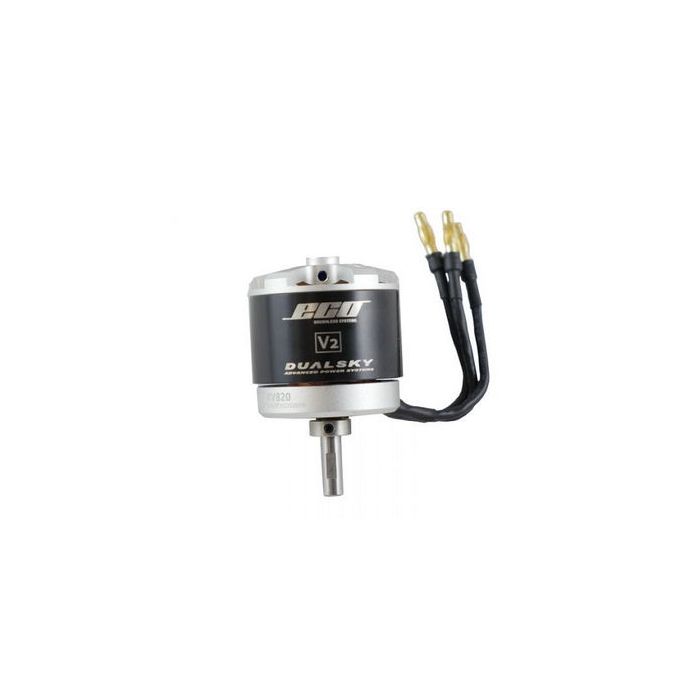

Dual Sky ECO V2 3520C 820kv 1040w 40E Brushless Outrunner Motor 210g 13x8 - 15x6E Prop Replaces .32 - .40 Glow Engine
Dual Sky ECO V2 3520C 820kv 1040w 40E Brushless Outrunner Motor 210g 13x8 - 15x6E Prop Replaces .32 - .40 Glow Engine
Dual Sky ECO V2 3520C 820kv 1040w 40E Brushless Outrunner Motor 210g 13x8 - 15x6E Prop Replaces .32 - .40 Glow Engine
Dual Sky ECO V2 3520C 820kv 1040w 40E Brushless Outrunner Motor 210g 13x8 - 15x6E Prop Replaces .32 - .40 Glow Engine
  • Load image into Gallery viewer, Dual Sky ECO V2 3520C 820kv 1040w 40E Brushless Outrunner Motor 210g 13x8 - 15x6E Prop Replaces .32 - .40 Glow Engine
  • Load image into Gallery viewer, Dual Sky ECO V2 3520C 820kv 1040w 40E Brushless Outrunner Motor 210g 13x8 - 15x6E Prop Replaces .32 - .40 Glow Engine
  • Load image into Gallery viewer, Dual Sky ECO V2 3520C 820kv 1040w 40E Brushless Outrunner Motor 210g 13x8 - 15x6E Prop Replaces .32 - .40 Glow Engine
  • Load image into Gallery viewer, Dual Sky ECO V2 3520C 820kv 1040w 40E Brushless Outrunner Motor 210g 13x8 - 15x6E Prop Replaces .32 - .40 Glow Engine

Dual Sky ECO V2 3520C 820kv 1040w 40E Brushless Outrunner Motor 210g 13x8 - 15x6E Prop Replaces .32 - .40 Glow Engine

DSM-51670
$140.00
$140.00
Arriving Soon
Shipping calculated at checkout.

Model: ECO 3520C
SKU: 51670
KV: 820
Turns: 5
Weight: 210g

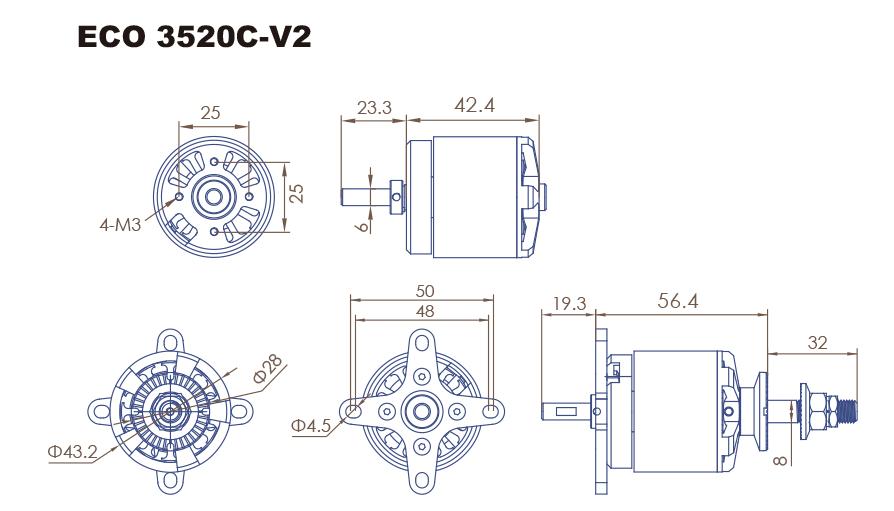

Dimensions (D × L): 43.2 × 42.4 mm
Slots & Poles: 12N14P
Resistance (Ri): 18.7 mΩ
No-load Current (Io @ 10V): 1.7A
No. of Cells (LiPo): 3–4S
Max. Efficiency Current: 40A
Max. Burst Current (15s): 65A
Max. Power (15s): 1040W
Max. Torque: 0.91 N·m
Shaft Diameter: 6 mm
Mounting Holes: 25 / 25 mm
Input Connectors: GC4.0
Recommended ESC: XC-65-LITE or XC6018BA
Propeller:

  • 4S: 13x8E, 14x7E, 15x6E+

Class: .50 4-Stroke, .32–.40 (40E) 2-stroke
